UNI GRIP S PN16

FÉM-FÉM, HÚZÁSBIZTOS

d21–290

Cső külső átmérő (mm) M Megengedett üzemi nyomás vízre (bar) Méretek (mm) Nyomaték (Nm) Súly (kg)

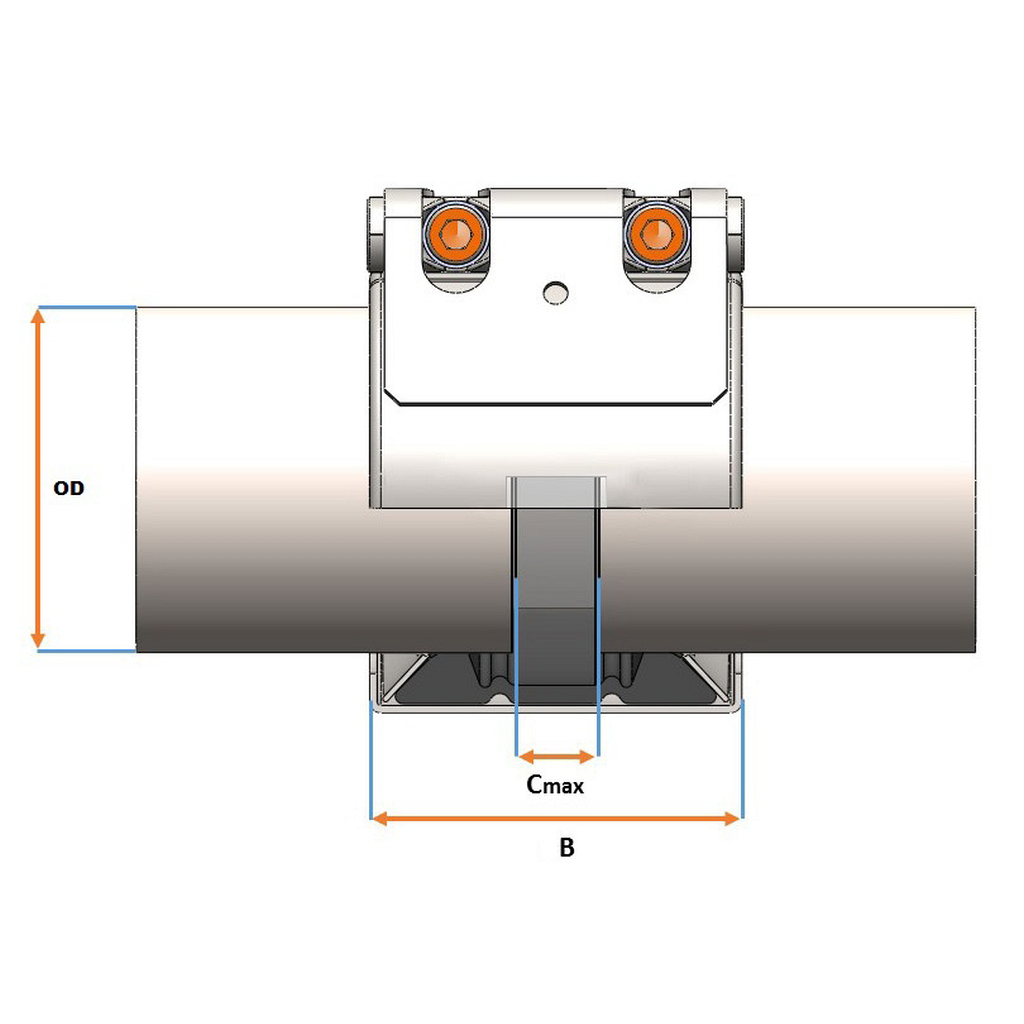

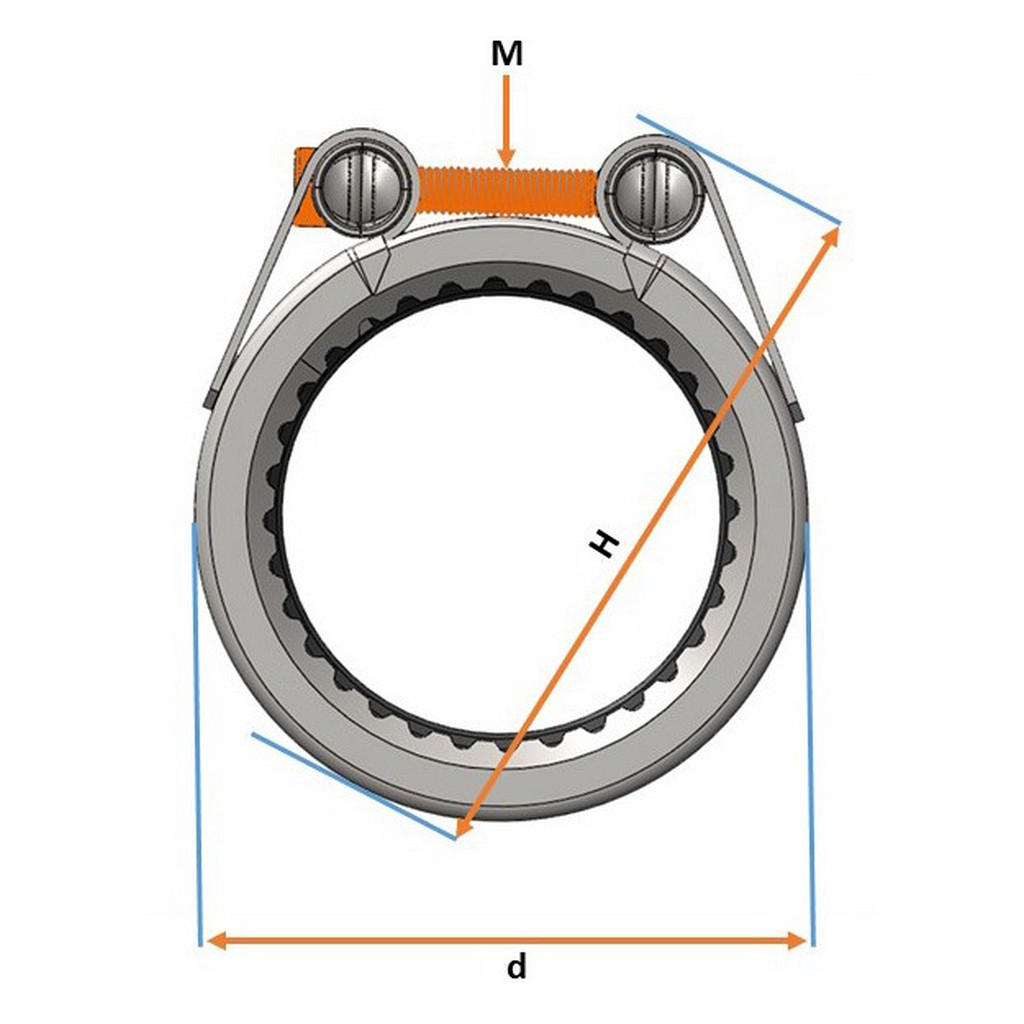

C max. OD min. OD max. OD1 < OD2 d B H
21,0 - 24,0 M6 70 10 21,0 24,0 1 46 45 76 7 0,2
25,0 - 29,0 M6 70 10 25,0 29,0 1 46 45 76 7 0,2
29,0 - 32,0 M6 70 10 29,0 32,0 1 54 45 84 7 0,2
33,0 - 36,0 M6 70 10 33,0 36,0 1 54 45 84 7 0,2
36,0 - 39,0 M8 60 15 36,0 39,0 2 66 60 104 25 0,4
39,0 - 43,0 M8 50 15 39,0 43,0 2 66 60 104 25 0,4
43,0 - 47,5 M8 50 15 43,0 47,5 2 74 60 112 25 0,4
47,5 - 52,5 M8 50 15 47,5 52,5 2 74 60 112 25 0,4
52,5 - 58,0 M8 50 25 52,5 58,0 2 85 75 125 25 0,6
58,0 - 64,0 M8 40 25 58,0 64,0 3 85 75 125 25 0,6
64,0 - 72,0 M10 40 30 64,0 72,0 3 108 95 164 40 1,4
72,0 - 80,0 M10 40 30 72,0 80,0 3 108 95 164 40 1,4
80,0 - 88,0 M10 35 30 80,0 88,0 3 124 95 170 40 1,6
88,0 - 96,0 M10 35 30 88,0 96,0 3 124 95 170 40 1,6
97,0 - 105,0 M10 35 30 97,0 105,0 3 141 95 187 40 1,7
104,0 - 112,0 M10 35 30 104,0 112,0 3 141 95 187 40 1,7
112,0 - 120,0 M10 35 30 112,0 120,0 3 158 95 202 40 1,9
122,0 - 130,0 M10 32 30 122,0 130,0 3 158 95 202 40 1,9
129,0 - 137,0 M12 32 40 129,0 137,0 3 178 110 230 65 3,4
137,0 - 145,0 M12 32 40 137,0 145,0 3 186 110 238 65 3,5
149,0 - 157,0 M12 32 40 149,0 157,0 3 197 110 249 65 3,6
157,0 - 165,0 M12 32 40 157,0 165,0 3 205 110 255 65 3,7
164,0 - 172,0 M12 32 40 164,0 172,0 3 212 110 262 65 3,8
185,0 - 198,0 M16 25 40 185,0 198,0 3 236 138 262 160 6,5
198,0 - 211,0 M16 25 40 198,0 211,0 3 249 138 275 160 6,7
210,0 - 223,0 M16 25 40 210,0 223,0 3 261 140 287 160 9,2
221,0 - 234,0 M16 25 40 221,0 234,0 3 272 140 298 160 9,5
234,0 - 247,0 M16 25 40 234,0 247,0 3 285 140 311 160 9,8
247,0 - 260,0 M16 25 40 247,0 260,0 3 298 140 324 160 10,1
*263,0 - 276,0 M16 25 40 263,0 276,0 3 314 140 340 160 10,5
277,0 - 290,0 M16 25 40 277,0 290,0 3 328 142 354 160 10,9
* CuNiFe csövek, falvastagság ≤ 4 mm esetén max. PN 2,5.
