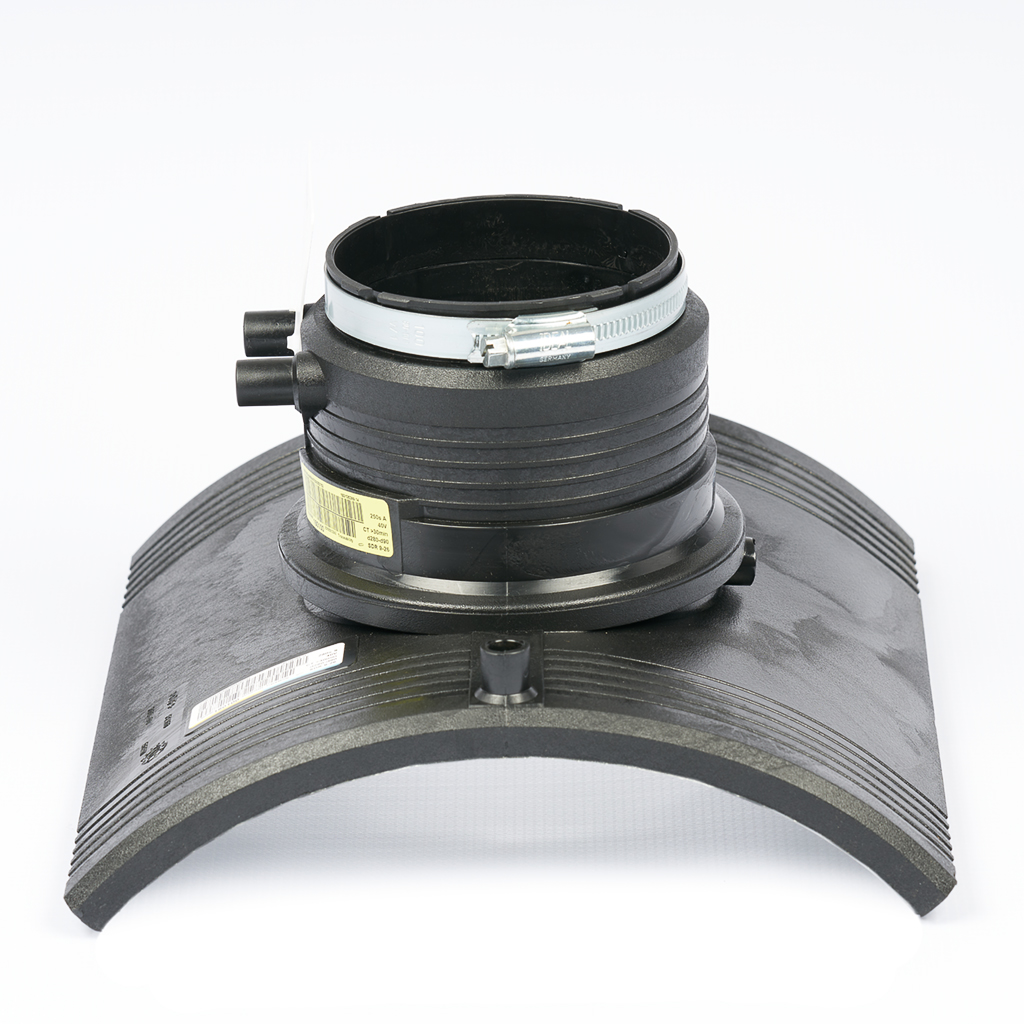

EF LEÁGAZÓ IDOM

SATURN

d280 - d630

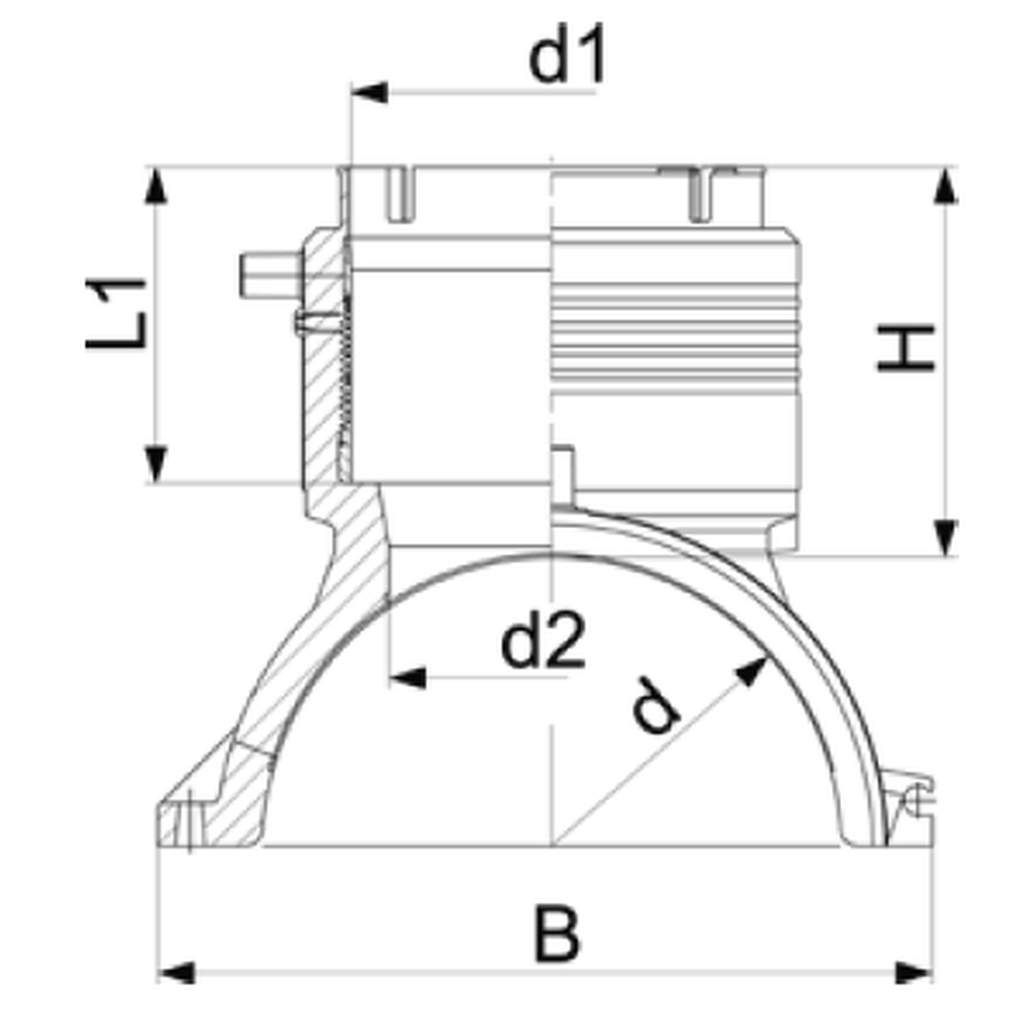

d (mm) d1 (mm) Cikkszám Súly (kg) Méretek (mm)
H L L1 B d2
280 90 075193135289000 1,242 102 260 82 243 65
280 110 075193135290000 1,295 108 260 88 243 86
280 125 075193135291000 1,530 129 260 99 243 86
315 - 355 90 075193135309000 1,214 102 260 82 249 65
315 - 355 110 075193135310000 1,297 108 260 88 249 86
315 - 355 125 075193135311000 1,530 129 260 99 249 86
400 90 075193135329000 1,022 102 260 82 256 65
400 110 075193135330000 1,116 108 260 88 256 86
400 125 075193135331000 1,369 129 260 99 256 86
450 90 075193135339000 1,022 102 260 82 256 65
450 110 075193135340000 1,116 108 260 88 256 86
450 125 075193135341000 1,369 129 260 99 256 86
500 - 630 90 075193135159000 1,086 102 260 82 263 65
500 - 630 110 075193135160000 1,159 108 260 88 263 86
500 - 630 125 075193135161000 1,388 129 260 99 263 86
