FŐ TULAJDONSÁGOK
Mérettartomány
d20 - d315
Anyaga
PE100 SDR11
Nyomásosztály

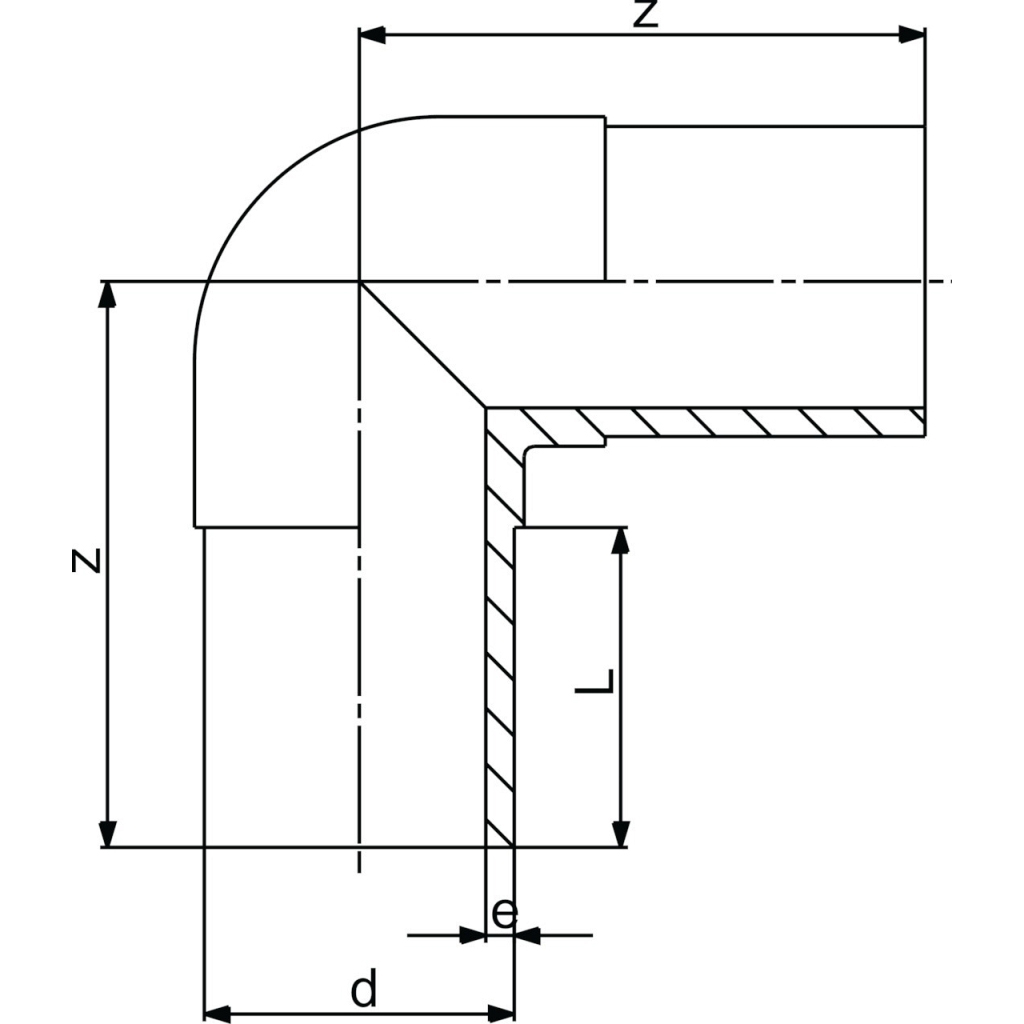

| d (mm) | Cikkszám | Súly (kg) | Méretek (mm) | ||
| z | L | e | |||
| 20 | 076753101006000 | 0,027 | 75 | 52 | 3,0 |
| 25 | 076753101007000 | 0,040 | 80 | 52 | 3,0 |
| 32 | 076753101008000 | 0,056 | 85 | 54 | 3,0 |
| 40 | 076753101009000 | 0,089 | 95 | 57 | 3,7 |
| 50 | 076753101010000 | 0,156 | 105 | 63 | 4,6 |
| 63 | 076753101011000 | 0,274 | 115 | 65 | 5,8 |
| 75 | 076753101012000 | 0,414 | 130 | 72 | 6,8 |
| 90 | 076753101013000 | 0,704 | 150 | 81 | 8,2 |
| 110 | 076753101014000 | 1,158 | 165 | 86 | 10,0 |
| 125 | 076753101015000 | 1,609 | 180 | 92 | 11,4 |
| 140 | 076753101016000 | 2,270 | 194 | 92 | 12,7 |
| 160 | 076753101017000 | 3,100 | 210 | 102 | 14,6 |
| 180 | 076753101018000 | 4,328 | 232 | 107 | 16,4 |
| 200 | 076753101019000 | 5,739 | 253 | 117 | 18,2 |
| 225 | 076753101020000 | 7,775 | 270 | 122 | 20,5 |
| 250 | 076753101001000 | 10,500 | 292 | 130 | 22,7 |
| 280 | 076753100922000 | 14,000 | 320 | 140 | 25,4 |
| 315 | 076753100923000 | 21,960 | 370 | 150 | 28,6 |
