FŐ TULAJDONSÁGOK
Mérettartomány
d20 - d315
Anyaga
PE100 SDR11
Nyomásosztály

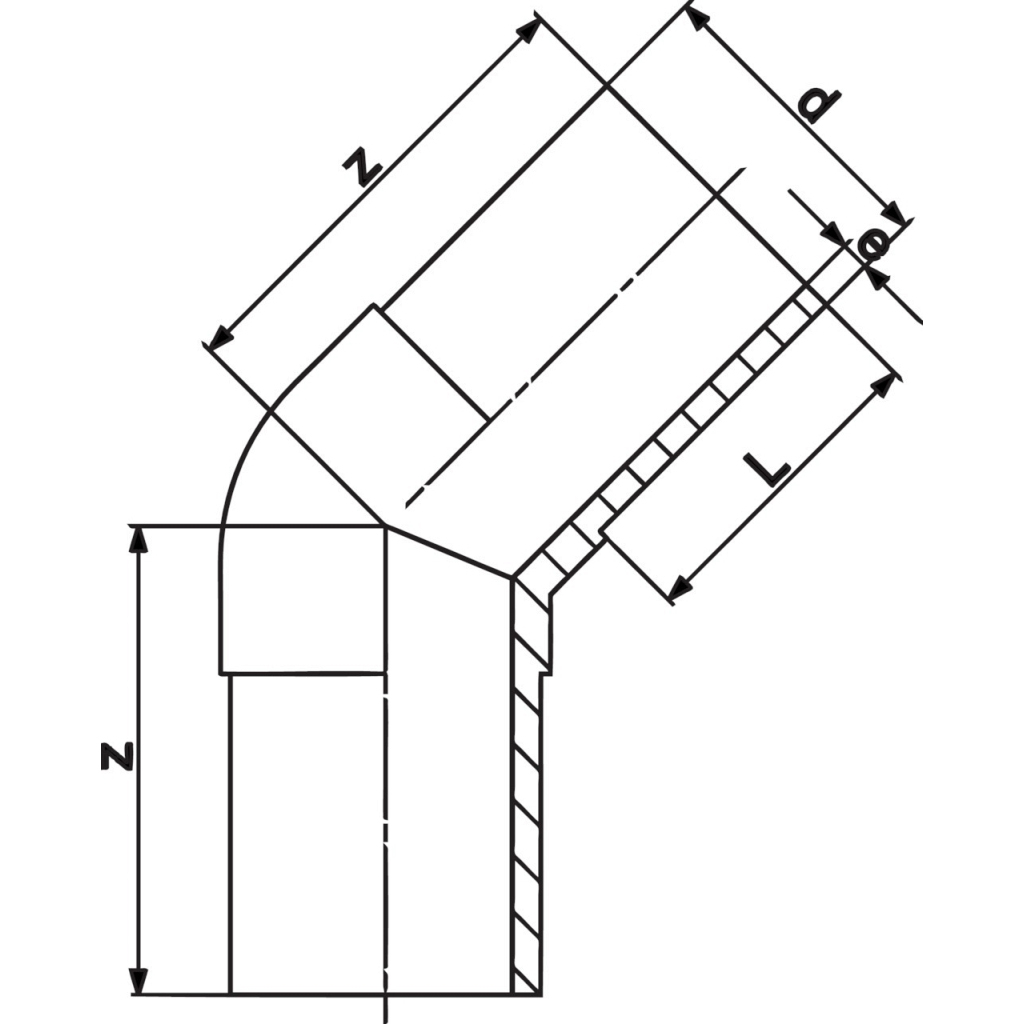

| d (mm) | Cikkszám | Súly (kg) | Méretek (mm) | ||
| z | L | e | |||
| 20 | 076753151006000 | 0,027 | 70 | 52 | 3,0 |
| 25 | 076753151007000 | 0,037 | 75 | 52 | 3,0 |
| 32 | 076753151008000 | 0,050 | 80 | 54 | 3,0 |
| 40 | 076753151009000 | 0,086 | 85 | 57 | 3,7 |
| 50 | 076753151010000 | 0,133 | 90 | 63 | 4,6 |
| 63 | 076753151011000 | 0,227 | 95 | 65 | 5,8 |
| 75 | 076753151012000 | 0,350 | 105 | 72 | 6,8 |
| 90 | 076753151013000 | 0,565 | 120 | 81 | 8,2 |
| 110 | 076753151014000 | 0,921 | 130 | 86 | 10,0 |
| 125 | 076753151015000 | 1,290 | 140 | 92 | 11,4 |
| 140 | 076753151016000 | 1,796 | 164 | 120 | 12,7 |
| 160 | 076753151017000 | 2,454 | 162 | 102 | 14,6 |
| 180 | 076753151018000 | 3,274 | 170 | 107 | 16,4 |
| 200 | 076753151019000 | 4,362 | 186 | 116 | 18,2 |
| 225 | 076753151020000 | 5,981 | 200 | 123 | 20,5 |
| 250 | 076753151021000 | 8,283 | 220 | 130 | 22,7 |
| 280 | 076753150922000 | 10,285 | 230 | 140 | 25,4 |
| 315 | 076753150923000 | 14,124 | 250 | 150 | 28,6 |
